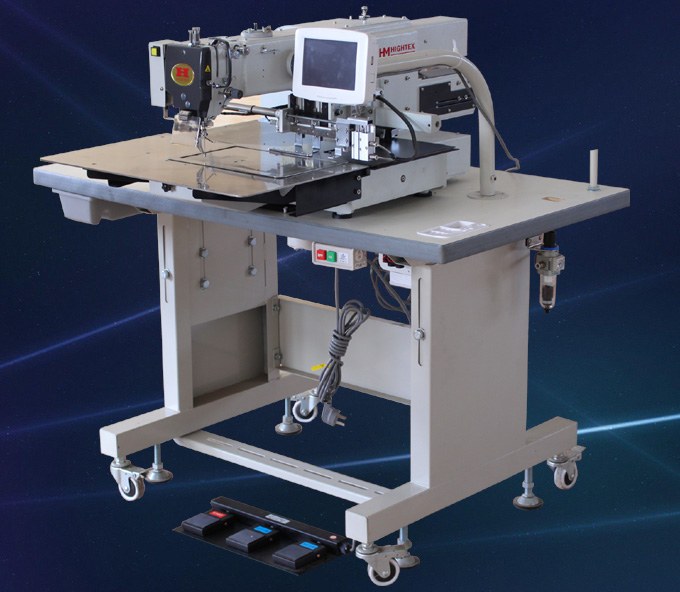

MLK300 High quality programmable pattern sewing machine
at afforable price, the electronically controlled pattern sewing
machine stands highest quality in China, but not the cheapest

Low cost Automatic programmable Pattern Sewing Machine
Low cost electronic Pattern Sewing Machine

Low cost programmable Pattern Sewing Machine

Low cost Automatic Pattern Sewing Machine

Your advantages:

1. The large sewing area of the HighTex MLK300 allows it to be a versatile electronic pattern industrial sewing machine for use in many different sections of the clothing, leather and textile industry;

2. This automatic pattern sewing machine stands hightest quality in China, better than any other Chinese CNC programmable pattern sewing machine;

3. Due to its affordable price (but not the cheapest machine), it is an excellent replacement of Mitsubishi electronically controlled pattern sewing machine, Juki programmable pattern sewing machine, Juki and Brother BAS programmable electronic pattern sewer;

4. Top quality parts guarantee high performance and long working life, including Japanese rotary hook (Koban or Hirose) and SMC pneumatic system;

5. There are no limitation of custom items this machine can sew provided the sewing pattern stays within its sewing field and the material does not exceed certain thickness levels;

6. This CNC programmable sewing machine with automatic thread trimmer and automatic lubrication system, easy to operate and maintain, does not require skilled workers;

7. Each machine supplies with comprehensive spare parts package that allow you to service, maintain and repair the machine for long time without the need to buy spare parts;

8. We offer you not just a machine in a box, but will custom clamp /jig for your tasks, pre-program, thoroughly test the machine before delivery.

Video of sewing webbing, leather               Video for sewing shoe upper                      Video of sewing label                               Sewing Japanese Kendo Armour


Max. Sewing Speed:

2500 rpm

Hook Type:

2 times large rotary hook

Sewing Area:

MLK300-2010 (200x100mm), MLK300-2516(250x160mm), MLK300-3020(300x200mm)

Needle System:

DPX17 #18

Max. Thread size

Metric #15 (=V207, T-210, 630dx3)

Optimal sewing thickness:

2-5mm of thick leather, webbing and clothing

Bobbin size:

Outside Dia. 25mm, Height 11mm

Stitch Length:



Aluminum bobbin

Work Holder Lift :


NeedleBar Stroke:


Presser Foot Lift:


Presser foot stroke:

4 mm to 10 mm

Max. QTY of Patterns:

10000 patterns

Needle cooler:

Cold air

Pattern Storage :

Internal & USB

Pattern Input :

Digital Keypad

Max. Number of Stitches:

8000 per pattern

Drive Motor:

Limi-Servo (450 Watts)

Air pressure:

0.6 MPa


200-240 Volt 1 or 3 Phase

Thread trimmer system:

Horizontal engagement with fixed knife and movable knife

Package (plywood case):

1200x1230x 1300 MM, G.W: 208KGS (MLK300-3020)

Need to expand your production and maximize profits? Contact us at
