828B Automatic heat length cutting machine with double
hot blades for heavy duty lifting slings and lashing straps

828BM Heavy duty hot knife webbing point-marking cutter

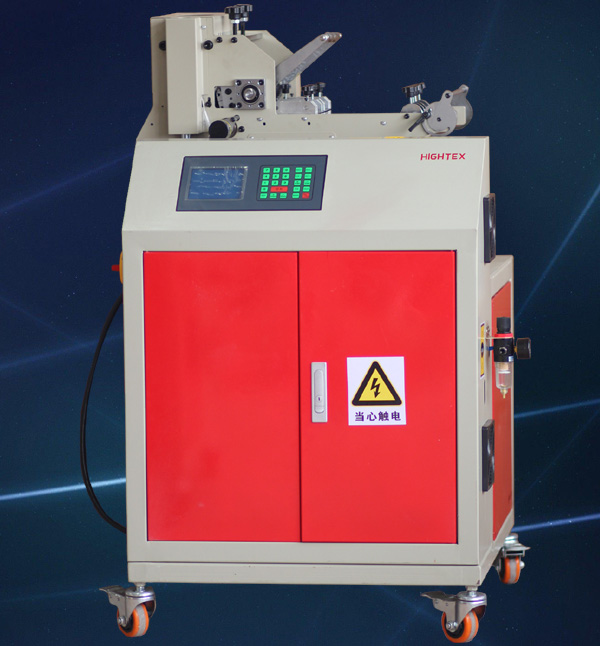

hot knife lifting slings cutting machine
Nylon webbing cutting machine

Hot cutting Nylon webbing

Hot cutting climbing ropes

Your advantages:

1. The temperature of heating blades can reach 600 Degree Celsius (°C) which can cut very thick synthetic webbing straps and slings made of Nylon, Polyester and Polypropylene (up to 16mm thickness);

2. Equipped with top and bottom blades (2 hot blades), melt the top and bottom side of webbing at same time, greatly improve cutting efficiency, and prevent from sharp burrs;

3. Heavy duty construction ensures long working life, the net weight of this automatic webbing cutting machine is 125KGS;

4. Its powerful and steady feeding system (top and bottom rollers) guarantees smooth feeding motion for extra heavy webbing straps and slings, and result in high precision cutting length;

5. Automation of any cutting processes, including automatic measuring, automatic cutting, automatic sealing etc;

6. Cut and seal the webbing in same time for simple future processing, for example sewing ratchet lashing straps, lifting slings and safety harness;

7. Automatic feed equipment is available as option, this labor saving device to maximize productivity and quality;

8. Extended heating blade can be custom made for cutting 300mm wide webbing, in the production of 10Ton lifting slings/10,000KG lifting straps.

Applications:

Heavy duty lifting slings, lifting straps, crane slings, rigging slings, army webbing, military equipment and other industrial lifting belts, ratchet straps, lashing straps & tie downs, load restraint equipment, cargo restraint ratchet strap, safety belts, fall protection equipment & safety harness, rescue belts, safety lanyard, military webbing straps, seat belts, climbing ropes, safety ropes


Specifications:

Max. cutting width:

200mm

Quantity of hot blades:

2 blades(Top and bottom hot knives)

Cutting length:

10mm to 50000mm

Material of hot knife:

SKD11 steel

Max.temperature of blade:

600 C

Counting system:

Independent digital encoder

Time delay:

2 to 30 second per cutting

Length of blade:

210mm

Blade driven method:

Pneumatic lift and down

Cutting tolerance:

+1mm / -1mm

PLC type:

Closed-loop Control Systems

Air pressure:

1Mpa

Power of heating tube:

2000W

Power:

200-240V/50-60HZ

Max. cutting thickness:

12mm of thick webbing made of Nylon, Polyester, Polypropylene

Tariff code (HS code):

8451500000

Optimal cutting thickness:

1-5 mm of thick webbing made of Nylon, Polyester, Polypropylene

Package (plywood case):

770 x 830 x 1320mm, G.W: 175 KGS
