cowboysew

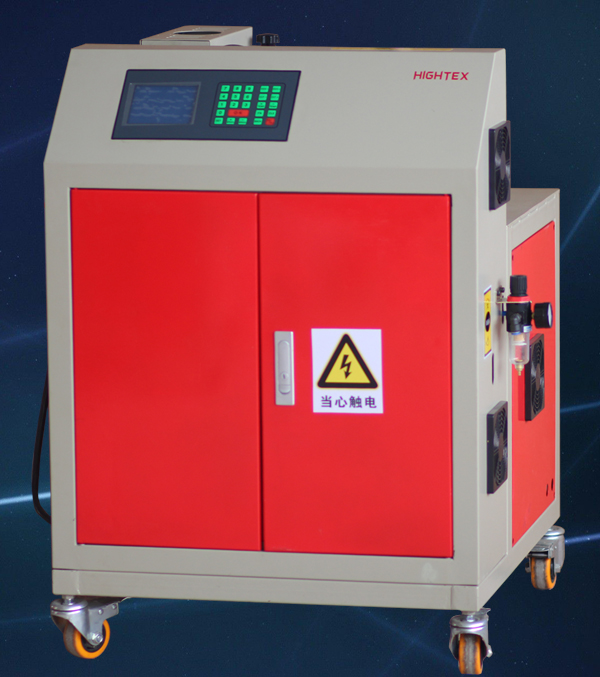

828A Automatic hot knife webbing cutting machine for

lashing straps, ratchet straps and safety harness webbing




hot knife lashing straps cutting machine
Polyester webbing cutting machine

lashing strap cutting machine

seat belt cutting machine

Your advantages:

1. The temperature of heating blades can reach 600 Degree Celsius (°C) which can cut very thick synthetic webbing straps and slings made of Nylon, Polyester and Polypropylene (up to 10mm thickness);

2. Heavy duty construction ensures long working life, the net weight of this automatic webbing cutting machine is 110KGS;

3. Its powerful and steady feeding system (top and bottom rollers) guarantees smooth feeding motion for extra heavy webbing straps and slings, and result in high precision cutting length;

4. Automation of any cutting processes, including automatic measuring, automatic cutting, automatic sealing etc;

5. Cut and seal the webbing in same time for simple future processing, for example sewing ratchet lashing straps, lifting slings and safety harness;

6. The machine stops when the webbing straps and slings has run out;

7. Durability of using knives;

8. Excellent price/performance ratio;

9. Maintenance costs are extremely low.

Applications:

Ratchet straps, lashing straps & tie downs, safety belts, fall protection equipment & safety harness, rescue belts, safety lanyard, military webbing straps, seat belts, lifting slings, lifting straps, crane slings, rigging slings

Click here for video 1                                                           Click here for video 2                                                          Click here to view photos

Specifications:

Max. cutting width:

150mm

Quantity of hot blades:

Single (Top hot knife)

Cutting length:

10mm to 50000mm

Material of hot knife:

SKD11 steel

Max.temperature of blade:

600 C

Counting system:

Independent digital encoder

Time delay:

2 to 30 second per cutting

Length of blade:

160mm

Blade driven method:

Pneumatic lift and down

Cutting tolerance:

+1mm / -1mm

PLC type:

Closed-loop Control Systems

Air pressure:

1Mpa

Power of heating tube:

1000W

Power

200-240V/50-60HZ

Max. cutting thickness:

7mm of thick webbing made of Nylon, Polyester, Polypropylene

Tariff code (HS code):

8451500000

Optimal sewing thickness:

1-3 mm of thick webbing made of Nylon, Polyester, Polypropylene

Package (plywood case):

770 x 830 x 1135mm, G.W: 150 KGS
