BAS-342GXL, BAS-342HXL Large area programmable CNC
pattern sewing machine with shuttle hook and cylinder bed
for high quality footwear, leather goods and upholstery

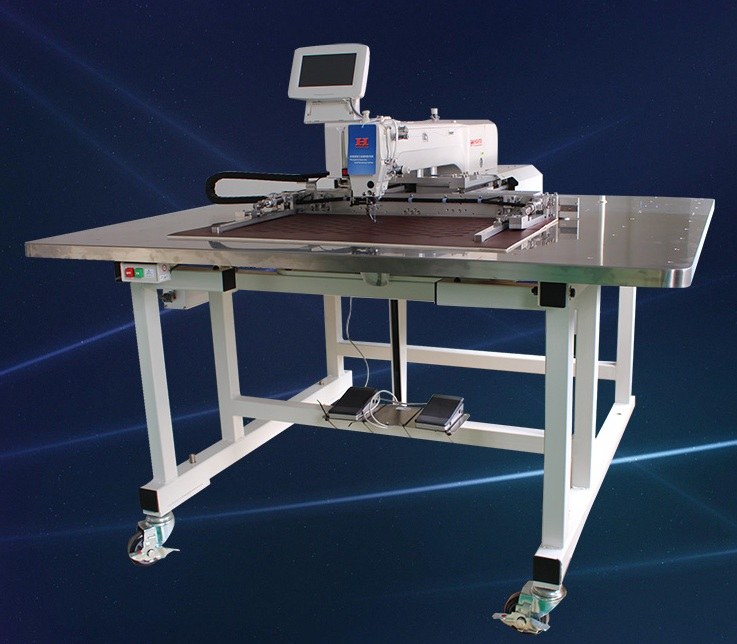

BAS-342GXL Electronic pattern sewing machine

BAS-342GXL Programmable pattern sewing machine for leather

BAS-326G Programmable Electronic Pattern Sewer

Your advantages:

1. Up to 600x400 large sewing area allow for sewing wide footwear, leather goods and upholstery panel by single operation;

2. The new auto thread trimming system can cut thread very short that eliminate manual thread trimming operations to improve productivity;

3. Presser foot control mechanism always provides uniform thread tightness (when thickness of material has been changed, the height of stepping presser foot is changed accordingly without tools required);

4. Smooth and beautiful stitches can be produced with a minimum resolution of 0.05mm;

5. Large shuttle hook with 2 times bobbin capacity helps reduce the frequency of bobbin thread changing when sewing with thick thread;

6. From now, the production process will be even easier: no need of skilled worker, zero waste time, just put your sewing product and you will see how easy it is;

7. The BAS-342HXL with Brother BAS type control system and BAS barcode system (change pattern number by the barcode).


1. Automotive upholstery, marine upholstery & aircraft upholstery: custom seat cushion, airbags, car seat cover, automotive Interiors (door panels, consoles, dashboards), boat interiors, aircraft interiors and motorcycles;
2. Home upholstery: upholstered panels wall, upholstered headboards, bedroom wall panels;
3. Leather goods: leather bags, shoes upper, leather straps, leather jacket;
4. Upholstered furniturea: sofas, couches, arm chairs + office chairs


Max. Sewing Speed:

2200 rpm

Hook Type:

Double-capacity shuttle hook

Sewing Area:


Needle System:


Max. Thread size

Metric #15 (=V207, T-210, 630dx3)

Feed mechanism:

Intermittent feed, pulse motor drive

Bobbin size:

Outside Dia. 25.5mm, Height 10mm

Stitch Length:

0.05 - 12.7 mm

Tariff code (HS code):


Work Holder Lift :


NeedleBar Stroke:


Presser Foot Lift:


Presser foot stroke:

4 mm to 10 mm

Max. QTY of Patterns:

10000 patterns

Pneumatic specifications:

Pneumatic method

Pattern Storage :

Internal & USB

Pattern Input :

Touch screen

Max. Number of Stitches:

20,000 per pattern

Drive Motor:

Limi-Servo (550 Watts)

Air pressure:

0.5 MPa 1.8 l/min


200-240 Volt 1 or 3 Phase

Thread trimmer system:

Horizontal engagement with fixed knife and movable knife

Lubrication system:

Replenishment with the oil braids from the oil tanks

Package (plywood case):

1620x1550x1420MM, G.W: 470 KGS
