828AC320 Heavy Duty Automatic Webbing Cutter for Cutting

& Marking 300mm Wide Webbing Slings

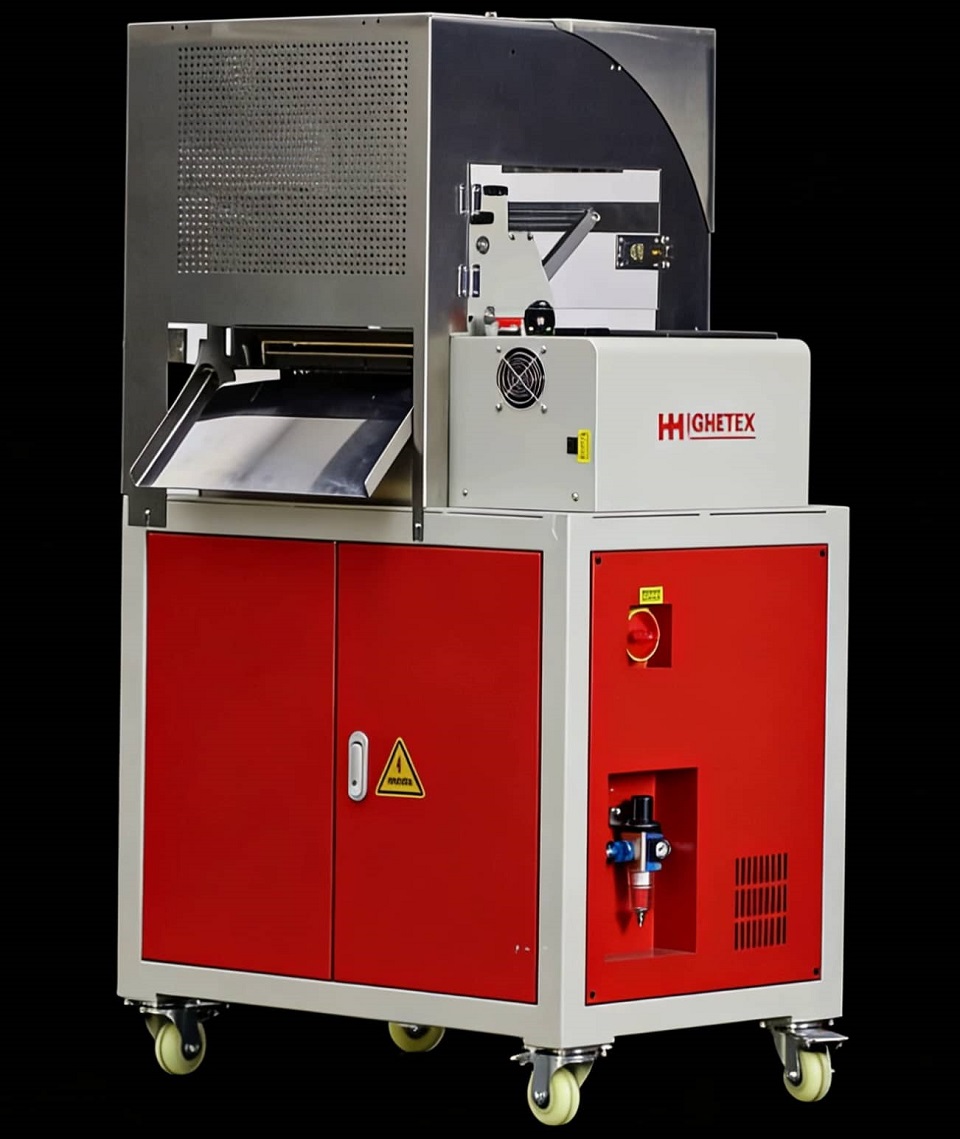

828AC320 Automatic Webbing Cutter for cutting 300mm wide slings

High-quality, durable machinery is essential to maximize production output and profit margins. When purchasing automatic cutting equipment, prioritizing quality over price is a critical investment. Machine failure doesn’t just mean high repair costs—it results in costly downtime, lost orders, and damaged client relationships.At Hightex, reliability is non-negotiable. Unlike alternative suppliers, our commitment to excellence begins long before the machine leaves our facility.

For our automatic webbing cutting machines, we dedicate several weeks to assembling and testing each unit, ensuring every detail is flawless. This eliminates setup hassles, ensuring your machine is ready for immediate operation upon arrival. Furthermore, these heavy-duty hot knife webbing cutters are manufactured in accordance with European safety standards (CE) to ensure safe operation.

Because we refuse to cut corners on quality, our automated webbing cutting machines take time to prepare. We appreciate your patience as we build the perfect machine for your business.

Your advantages:

1. This heavy duty webbing cutting machine is with upper and lower knives. These hot blades are made of high-quality high-speed steel (heating capability up to 600 ° C is provided);

2. This cutter has a maximum cutting width of 300mm, allowing the potential for a wide range of materials to be cut. Materials can also be cut parallel to each other to increase productivity;

3. Because hot knife melts the end of tape, cutting is sealed neatly without fraying, and because the upper knife is fixed and only the knife plate moves up and down, meaning the machine is very durable and long-lasting;

4. It is possible to turn on the function of applying dot markings with a marker - Marks webbing where the operator is required to sew (Optional);

Cutting and marking

5. This automatic webbing cutting machine provides dwell time to ensure the thicker material cuts all the way through for a perfect seal;

6. The knife has a special shape for better melting on both sides;

7. This automated webbing cutting and marking machine using touch screen which is easier to navigate and provide clear and intuitive settings;

High quality auomatic webbing cutting machine

8. If necessary, it is possible to turn on the device for preliminary feeding of the material, which ensures the stability of the tape tension at the moment of pulling it through the cutting machine, minimizing the possibility of jerking.

Automatic webbing feeding device

Applications:

heavy duty webbing lifting slings, lifting straps, crane slings, rigging slings and other industrial lifting belts, ratchet straps, lashing straps, safety belts, rescue belts, safety lanyard, safety rope, climbing rope, dog rope, marine rope, fall protection equipment & safety harness, seat belts and military webbing straps





Specifications:

Max. cutting width:

300mm

Quantity of hot blades:

2 blades(Top and bottom hot knives)

Cutting length:

10mm to 50000mm

Material of hot knife:

High speed steel

Max.temperature of blade:

600 C

Counting system:

Independent digital encoder

Time delay:

1 to 1.5 second per cutting

Length of blade:

320mm

Blade driven method:

Pneumatic lift and down

Cutting tolerance:

+2mm / -2mm

PLC type:

Closed-loop Control Systems

Air pressure:

0.4-0.6 Mpa

Power of heating tube:

3500W

Power:

200-240V/50-60HZ

Max. marking point:

10

Tariff code (HS code):

8451500000

Optimal sewing thickness:

1-5 mm of thick webbing made of Nylon, Polyester, Polypropylene

Package (plywood case):

1480X840X560mm, G.W: 180KGS
