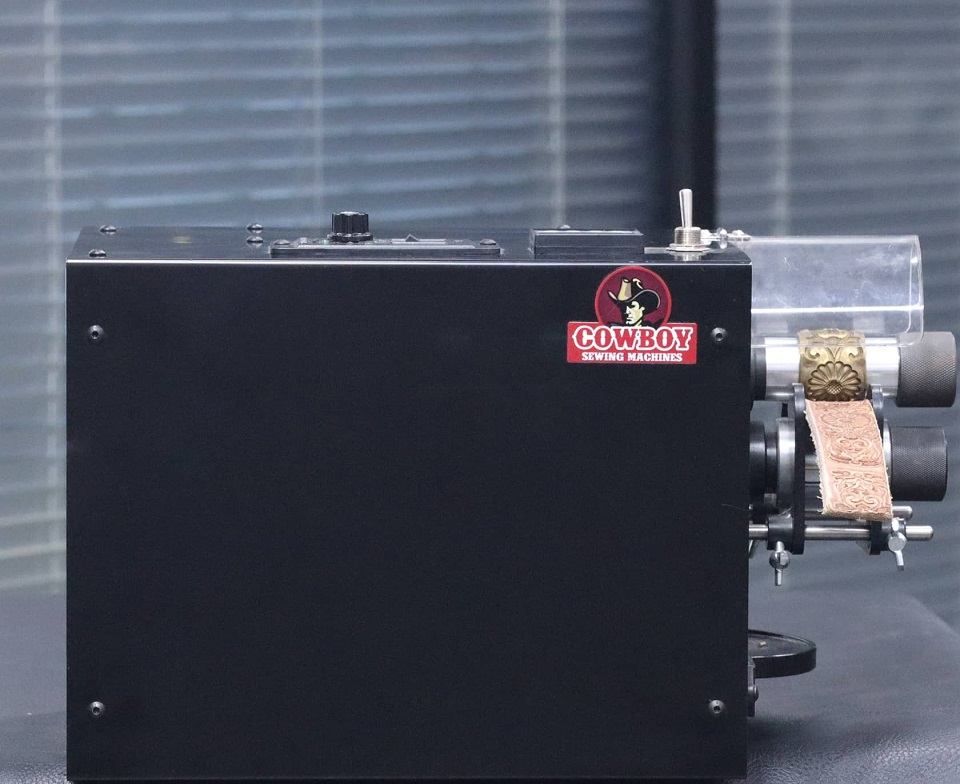

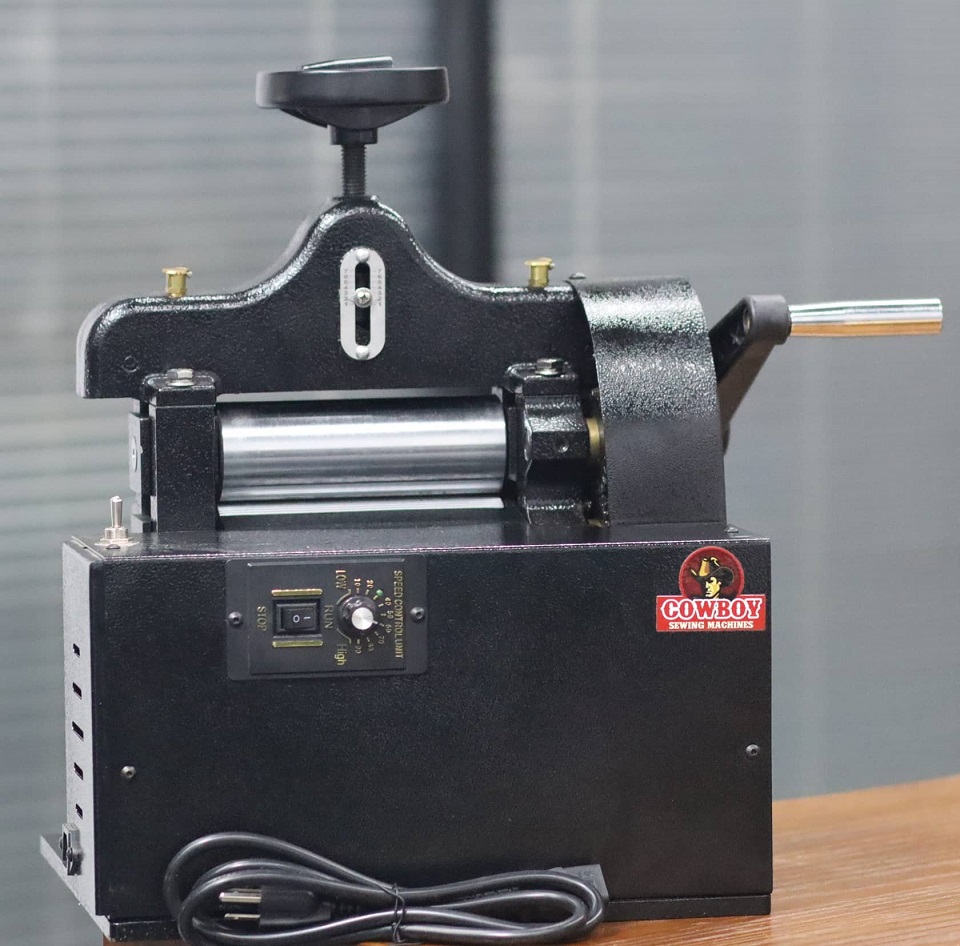

8116PRO motorized leather splitter

CB8116PRO hand cranked or motorized leather splitter for splitting and leveling vegetable tanned leather

Your advantages:

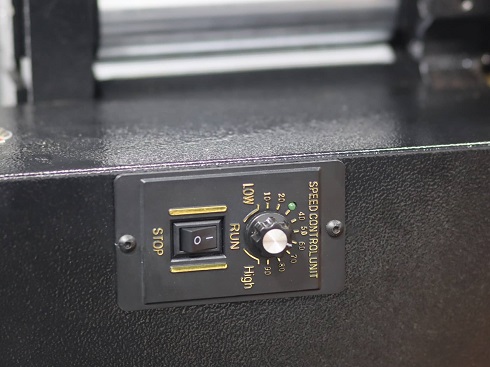

1. Variable Speed Motor Drive: It is equipped with a speed-adjustable electric motor (which includes a reverse function). This allows you to precisely accelerate or decelerate how fast you feed material through the machine, giving you optimal control over different types of projects.

Heavy duty leather splitting machine

2. Dual Operation Flexibility: The 8116PRO is highly versatile and can be operated via the motorized drive or switched back to a hand crank depending on your preference and need for precision.

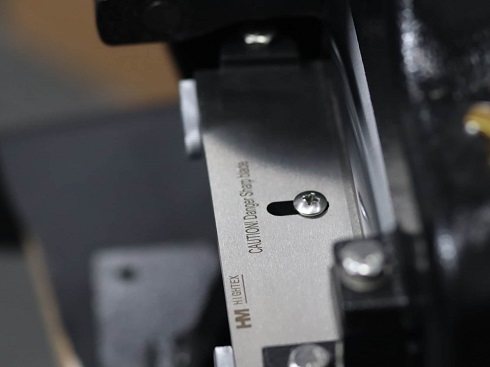

3. High Wear-Resistant D2 Steel Blade: The motorized version is built with a premium D-2 steel blade, which boasts extremely high wear and abrasion resistance to withstand continuous, powered splitting.

heavy duty vegetable tanned leather splitter

4. Massive Material Leverage: Thanks to its gear-driven bottom feeder and a highly adjustable thickness lever, the machine easily processes thick, tough materials ranging from 3 oz. to 14 oz.. It handles vegetable-tanned leather, heavy hides, belts, shoe soles, rubber, and crepe with minimal effort.

5. Portable Workbench Design: Despite having an integrated motor system, it retains a compact, bench-mounted design using 4 pre-drilled screw holes to securely anchor to any standard workshop workbench.

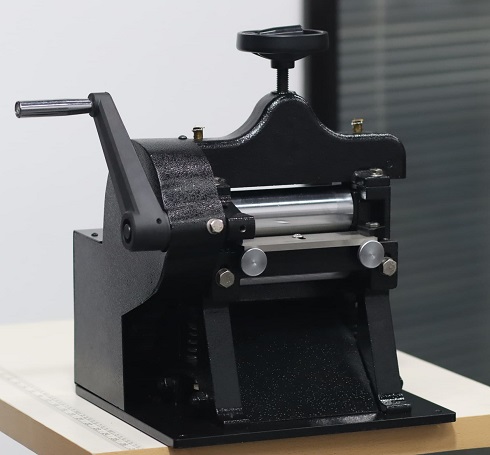

Hand crankleather splitting machine

Applications:

Leather belt strap, leather bags, shoes, gun holsters, knife sheaths, leather harness, saddles, custom handbags, horse tack, bridles, bracelets, wallets, costumes, beauty cases, makeup case, phone case, car key cover and other leather accessories


Specifications:

Length of blade:

100mm

Optimal splitting width:

10mm - 80mm

Minimum skiving thicknes:

1mm

Leather type:

Vegetable Tanned Leather and Veg Tan Hides (NOT for soft upholstery leather)

Material of blade:

High speed steel (HSS)

Packing size (Plywood case):

400x350x485mm, G.W: 49 KGS
