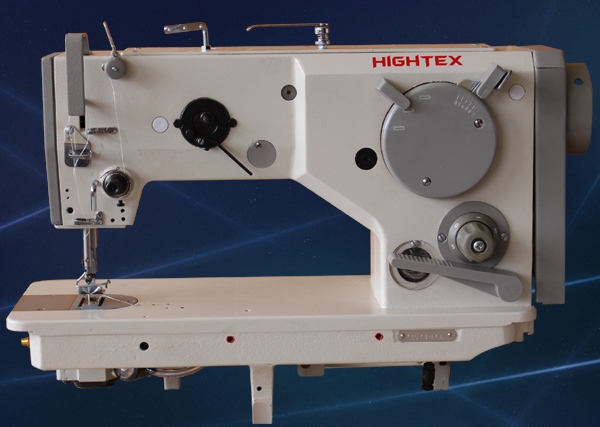

9568 Heavy duty zigzag sewing machine with
big hook and parallel vertical needle bar motion
for decorative stitching leather and upholstery



Durkopp Adler 525i
Durkopp Adler 525i zigzag sewing
Parallel vertical needle bar motion

Global 1568 heavy duty zigzag sewing machine
2 times large rotary hook

Your advantages:

1. It employs a parallel vertical needle bar motion for stronger striking power, easily stitch sew medium to heavy and hard materials like leather, canvas, webbing, plastic, synthetic rubbers and elastic materials;

2. The hook containing the lower bobbin is twice the normal size, resulting in less bobbin changes and when combined with the vertical take up lever system, it is of particular use when using thick threads for decorative stitching;

3. A large Zigzag width of up-to 10mm to give nice decorative or functional stitching on a wide range of applications;

4. Modified lubrication and a reservoir in the machine arm reduces maintenance, guarantees the correct lubrication doses, protects the hook against wear;

5. New needle thread tension regulation for more precise tension adjustment

6. This zigzag sewing machine can also be set to sew straight stitch;

7. Improved working conditions for the operator by reduced noise level and less vibrations.

Applications:

For functional and ornamental stitching shoes upper, footwear, sofa covers, leather bags, handbags, sports apparatus, wet suits, filters, parachutes, spinnakers, windsurf sail, blinds, nets, bandages, straps, Velcro, Neoprene, body supports etc.

Click here for DEMO video 1                                                                      Click here for DEMO video 2

Specifications:

Max. Sewing Speed:

2000 rpm

Hook Type:

Large vertical rotary hook

Presser Foot Lift:

13mm

Needle bar stroke:

36 mm

Needle System:

134-35 (#90-#150)

Max. Thread size

20/3

Stitch Length:

0-5mm

Bobbin size:

Outside Dia. 26mm, Height 11.2mm

Max. zigzag width

10mm

Take up stroke:

86 mm

Working space:

260mm (length) x120mm( High)

Recommended motor:

Minimum 0.55 kW

Packing size:

650X320X620 MM

Weight:

50KGS
