71008 Extra heavy duty automatic pattern tacking machine
and bar-tack sewing machine for ropes, slings and harness

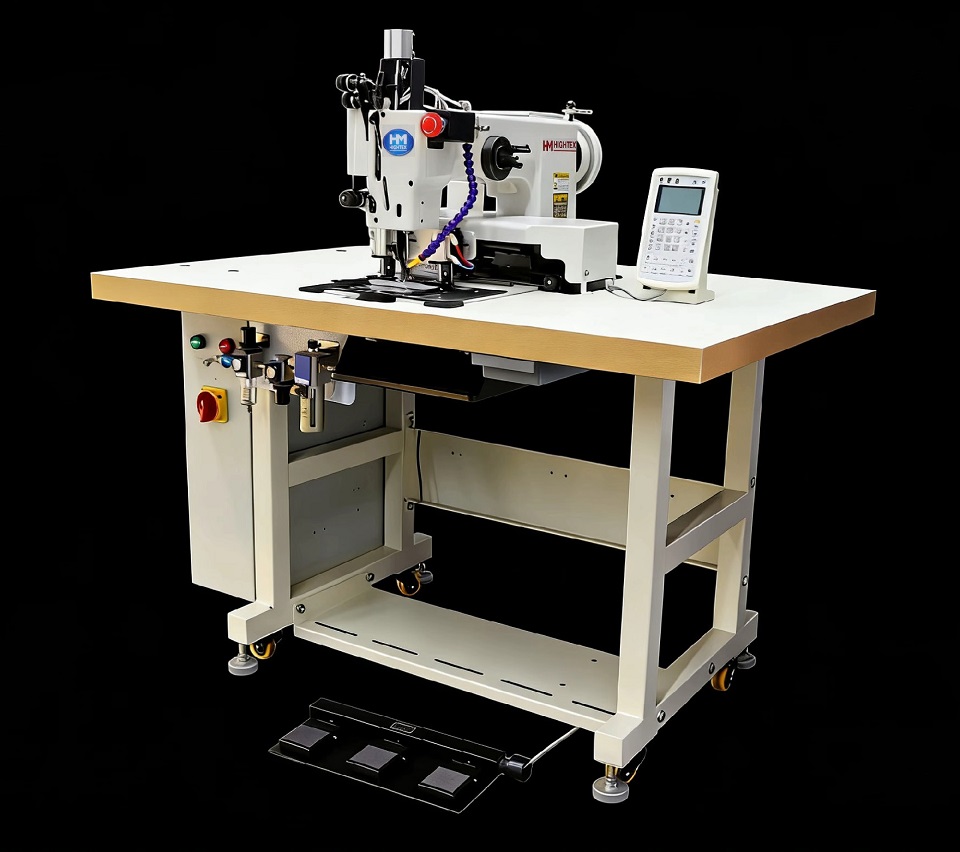

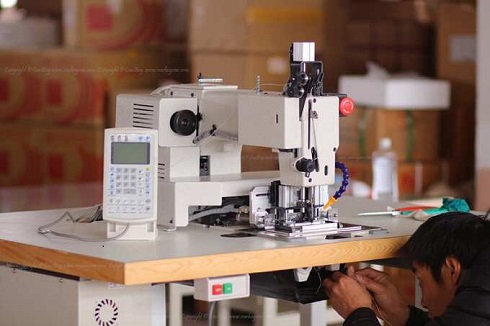

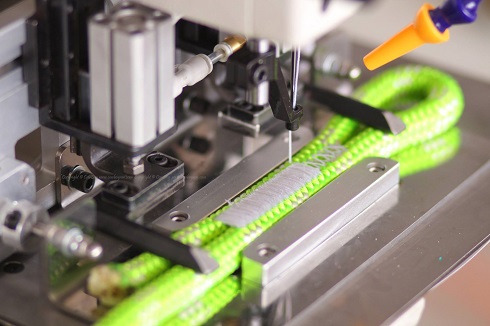

71008R Heavy automatic rope sewing machine to make sewn eye termination

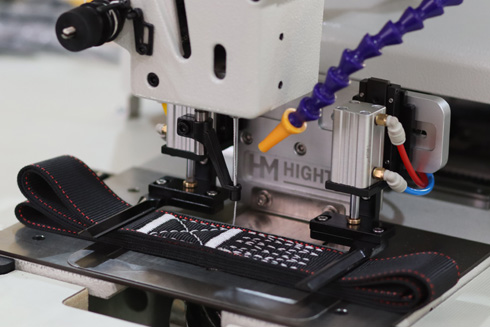

71008S Automatic sewing machine for stitching lifting slings and safety harness



lashing straps sewing machine
rope sewing machine

sling sewing machine

Your advantages:

1. Adler 204 type large Barrel shuttle hook and bobbin capacity offer high efficiency seven sewing with very thick thread;

2. Can easily sew 2-5 ply synthetic webbing slings (3.5mm of each) together or stitch 2 ropes with each of 18mm(diameter) ;

3. Easily sew with thick thread up to metric size #6 (=T-500, V462, 1500dx3);

4. Programmable (free software), updating and storage easier, standard sewing patters in the manufacturing of climbing ropes
lifting slings and safety harness, including box-x stitch pattern, WW, Bar-Tack and Box Cross Stitch Patterns;

5. This heavy duty automatic sewing unit is capable of sewing various materials such as Nylon, Polyester, Polypropylene, Webbing,
Kevlar, Vinyl, Leather and Canvas stored in the machine;

6. This automatic sewing machine is completely assembled and serviced, Ready To Sew, delivered by strong plywood case;

7. This machine is durable, very easy to use, and fool-proof for beginners or more advanced sewers.

Applications:

For Bar-tacking (zigzag sewing) ropes and cordage for Arborist climbing ropes, Climbing & Caving Ropes, Boating & Marine Ropes and Rescue Ropes.

For pattern tacking synthetic lifting slings, seat belts, safety harness, military equipment, backpacks, crane slings, lanyards, spanzet, safety belts, life vest, fall protection equipment, industrial safety products, rigging products, saddles and parachutes.

Click here for video 1                                                                    Click here for video 2                                                                  Click here to view photos

Specifications:

Max. Sewing Speed:

600 rpm for sewing webbing slings, 300 rpm for sewing rope

Hook Type:

Adler 204 Large Barrell Shuttle Hook

Sewing Area:

130 x60mm (71008) , 130 x 20mm (71008R) , 130x 110mm (71008S)

Needle System:

Schmetz 794 (DYx3) #26

Max. Thread size

Metric#6 (=T-500, V462, 1500dx3)

Max. Sewing thickness:

18mm thick slings orand rope

Bobbin size:

Outside Dia. 24mm, Height 30.5mm

Stitch Length:

0.1~12.7mm

Bobbin:

Steel bobbin

Work Holder Lift :

40mm

NeedleBar Stroke:

56.6mm

Presser Foot Lift:

25mm

Presser foot stroke:

5 mm to 15 mm

Max. QTY of Patterns:

200 patterns

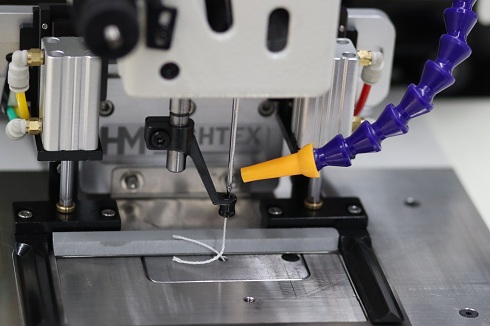

Needle cooler:

Cold air

Pattern Storage :

Internal & USB

Pattern Input :

Digital Keypad

Max. Number of Stitches:

8000 per pattern

Drive Motor:

Limi-Servo (750 Watts)

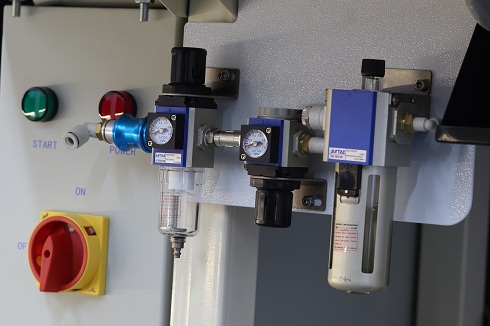

Air pressure:

0.6 MPa

Power:

200-240 Volt 1 or 3 Phase

Package (plywood case):

1290x990x1340mm, G.W: 230 KGS
