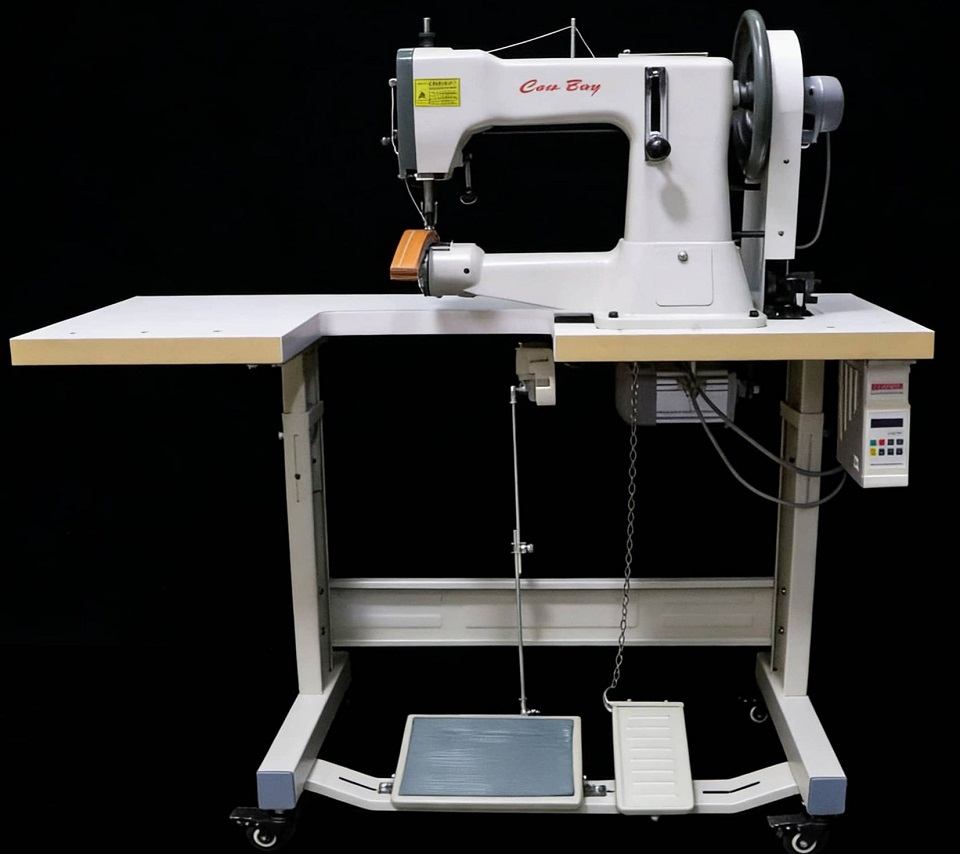

CB3200 The lowest cost heavy duty compound feed leather
sewing machine for saddle makers, harness makers and
leather crafts -- US PATENT APPROVED



cheap leather sewing machine
cheap sewing machine hook

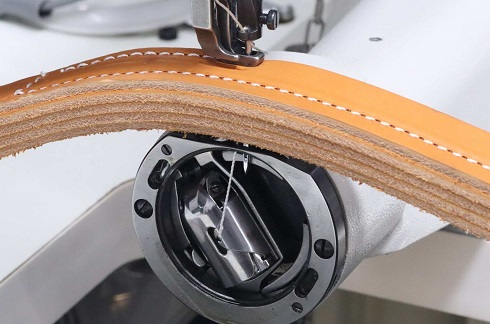

Juki TSC-441 type Large Barrel Shuttle Hook

Box type speed reducer
Precision step-by step stitching

Your advantages:

1. This machine is the lowest cost heavy duty compound feed saddle and harness stitcher offered in the market today. The patent approved design of this machine ensures even stitches in a variety of heavy materials;

2. The compound feed mechanism of this machine features a feed dog, walking foot, and needle feed that all work in unison to insure feeding of the most difficult materials with ease;

3. The presser foot has an extra high lift and can go up to 18mm, allowing for a large range of extra heavy weight material or bulky items to be used;

4. The special extra large Barrel shuttle hook and bobbin capacity reduces the number of bobbin changes and offers high efficiency in sewing products using extra thick thread up to metric size 7* (=V415, 1300dX3 or T-400);

5. This leather stitching machine features a heavy duty cylinder arm shape which helps in the production of 3-dimensional items;

6. Special flatbed tabletop attachment available that allows the cylinder arm sewing surface to be converted to a flat sewing surface to allow for better stitching with certain types of work;

7. The 11 inch Mega Flywheel of this saddle and harness sewing machine is to create more torque for very hard and rigid leather for saddle makers and harness makers.

Applications:

This machine is the ideal choice for sewing chaps, chinks, leather pouches, horse tack, bridles, breast collars, halters, reins, holsters, knife sheaths, saddles and harness, synthetic materials such as nylon, Biothane, Ohiothane, other various coated and laminated products, sheep's fleece and hair on cowhide.

Click here for video 1                     Click here for video 2                     Click here for Special sewing attachments                     Click here for hand stitcher

Specifications:

Max. Sewing Speed:

700 rpm

Hook Type:

HAD-204 Barrel Shuttle Hook

Presser Foot Lift:

18mm

Needle bar stroke:

56 mm

Needle System:

794 S leather point needle, #160-#280

Max. Thread size

#7, V415, 1300dX3, T-400

Stitch Length:

0-10mm

Bobbin size:

Outside Dia. 24mm, Height 30.5mm

Take up stroke:

80 mm

Balance wheel Dia.:

11 inches

Working space:

268mm (length) x166mm( High)

Recommended motor:

Minimum 0.75 kW

Packing size:

630x320x550MM

Weight:

46KGS
