cowboysew

EMS-250CNC Free programmable large area embroidering
and sewing machine with great flexibility, ideal for sewing
car seat covers and upholstered panels

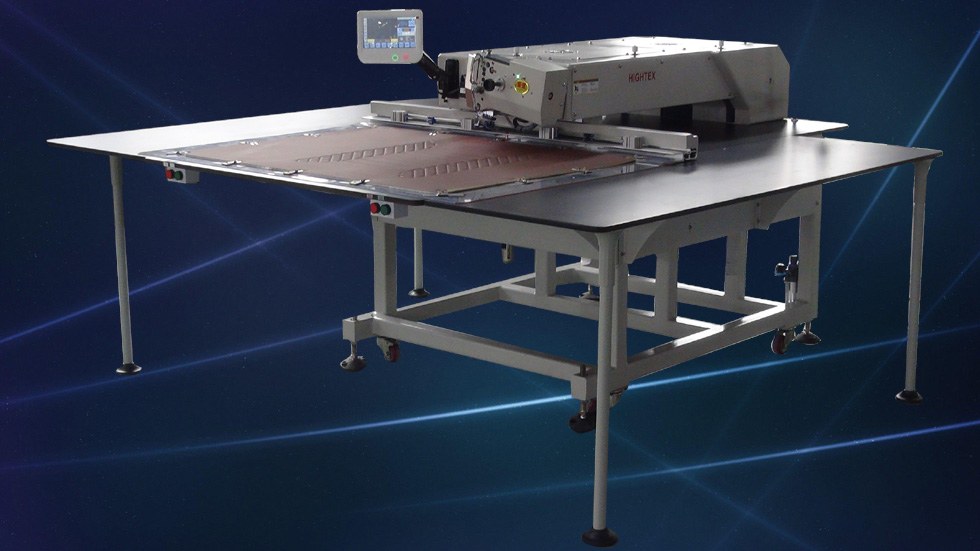

Car seat cover sewing machine

Your advantages:

1. Large rotary hook with 2 times bobbin capacity helps reduce the frequency of bobbin thread changing when sewing with thick thread;

2. Optimized thread-taking-up mechanism and feeding mechanism helps achieve high-quality seams uniformly in every sewing direction;

3. Super large sewing area (max.1500X1000 mm) allow for stitching large size project (car seat cover and upholstered panels wall etc) by one time;

4. Adopt strong quilting machine head (instead of long arm sewing machine head), avoid vibration and noise, even sewing very thick material;

5. Machine head lifting function: head Liftable 30 mm, special for stitch padded car seat cover and upholstered panels wall etc;

6. Standard equipped with reliable automatic thread trimmer;

7. Standard equipped with Barcode Scanner for automatic pattern selection.

Applications:

1. Automobile industry: car seat cushion, airbags, car seat cover, upholstery and linings

2. Home upholstery: upholstered panels wall, upholstered Headboards, bedroom wall panels

3. Shoe production: shoes upper for leisure shoes, cowboy boots, sports shoes, work and military boots

4. Leather and plastic articles: leather bags, leather straps, etc.

5. Technical textiles: Tactical vests, protective clothing, awnings, filters

6. Living/office: Sofas, couches, arm chairs + office chairs.

Click here for video 1                                          Click here for video 2

Specifications:

Max. Sewing Speed:

3000 rpm

Hook Type:

2 times large rotary hook

Sewing Area:

EMS-250CNC-6050:600 x500mm, EMS-250CNC-10080:1000 x 800mm, EMS-250CNC-150100:1500x1000mm

Needle System:

DPX17 #14 to #25

Max. Thread size

Metric#10 (=T-270, V277, 840dx3)

Optimal sewing thickness:

5-20mm thick padded upholstery cover

Stitch length:

0-10mm

Sewing machine head lift :

30mm

NeedleBar Stroke:

41.2mm

Max. Number of Stitches:

30000 per pattern

Drive Motor:

Limi-Servo (750 Watts)

Air pressure:

0.6 MPa

Power:

200-240 Volt 1 or 3 Phase

Shipping package:

1250x1350x 2450 mm, G.W: 600/490KGS

Table size:

2300x1800 mm


Need to expand your production and maximize profits? Contact us at info@automatic-sewing.com
