828C Heavy duty automatic hot knife webbing cutting machine

with rotating knife for straight and angle cutting (-45/+45)

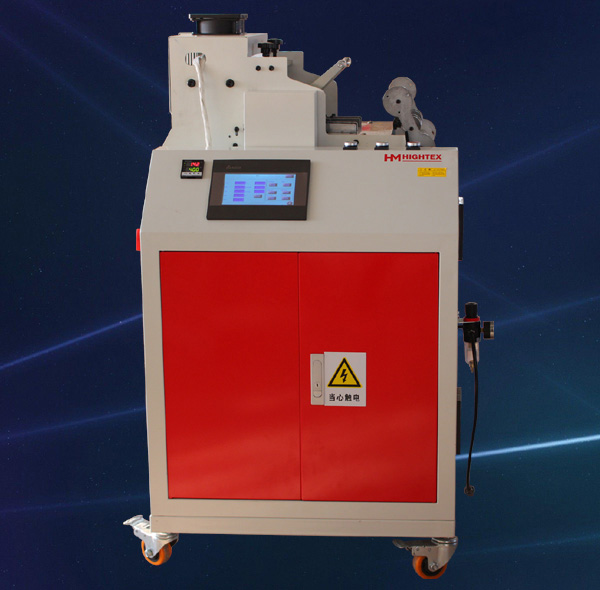

828C hot knife 45 angle cutting machine
828C automatic hot knife angle cutting machine

828C webbing angle cutting machine

828C hot knife webbing angle cutting machine

Your advantages:

1. Both angles (start and end) can be adjusted independently from 0-45 degrees, and the angles can be adjusted easily by typing each angle into a numeric display (the knife rotation is performed by a stepping motor);

2. The temperature of heating blades can reach 600 Degree Celsius (C) which can cut very thick synthetic webbing straps and slings made of Nylon, Polyester and Polypropylene (up to 16mm thickness);

3. Heavy duty construction ensures long working life, the net weight of this automatic webbing cutting machine is 150KGS;

4. Its powerful and steady feeding system (top and bottom rollers) guarantees smooth feeding motion for extra heavy webbing straps and slings, and result in high precision cutting length;

5. Automation of any cutting processes, including automatic measuring, automatic cutting, automatic sealing etc;

6. Cut and seal the webbing in same time for simple future processing, for example sewing ratchet lashing straps, lifting slings and safety harness;

7. The machine stops when the webbing straps and slings has run out;

8. Using PLC controlling system, very easy to operate and setting.

Applications:

fall protection equipment & safety harness, seat belts, heavy duty lifting slings, lifting straps, crane slings, rigging slings, army webbing, military equipment and other industrial lifting belts, ratchet straps, lashing straps, safety belts, rescue belts, safety lanyard, military webbing straps

Click here for video 1                                                                Click here for video 2

Specifications:

Max. cutting width:

150mm

Quantity of hot blades:

2 blades(Top and bottom hot knives)

Cutting length:

10mm to 50000mm

Material of hot knife:

SKD11 steel

Max.temperature of blade:

600 C

Counting system:

Independent digital encoder

Time delay:

2 to 30 second per cutting

Length of blade:

150mm

Blade driven method:

Pneumatic lift and down

Cutting tolerance:

+1mm / -1mm

PLC type:

Closed-loop Control Systems

Air pressure:

1Mpa

Power of heating tube:

1000W

Power:

200-240V/50-60HZ

Max. cutting thickness:

12mm of thick webbing made of Nylon, Polyester, Polypropylene

Tariff code (HS code):

8451500000

Optimal sewing thickness:

1-5 mm of thick webbing made of Nylon, Polyester, Polypropylene

Package (plywood case):

900X790X1360mm, G.W: 198KGS
