828 Low cost automatic hot knife cutting machine for heavy

duty webbing straps in the production of slings and harness

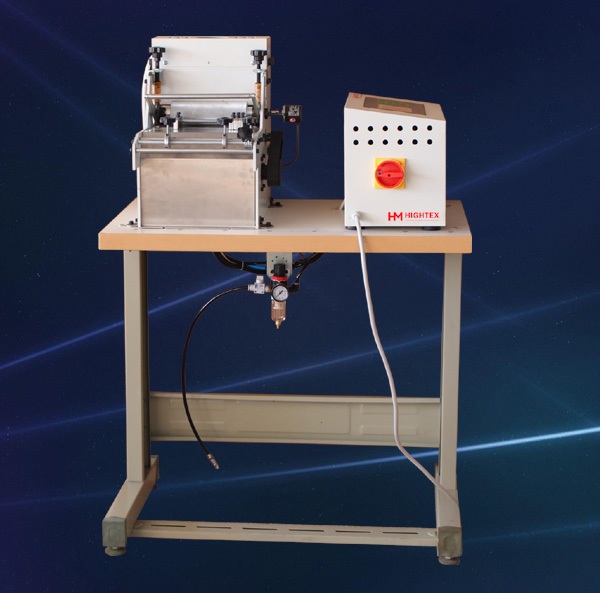

hot knife lashing straps cutting machine
828 Automatic lifting sling cutting machine

828 Automatic lashing straps cutting machine

828 Automatic cargo straps cutting machine

Your advantages:

1. The lowest cost heavy duty automatic hot knife cutting machine for cargo slings and safety harness webbing available on the market today;

2. The temperature of hot blade is upto 600 C, can cut all types synthetic webbing straps made of Nylon, Polyester and Polypropylene;

3. Temperature, cutting length, production quantity, cutting time all programmable;

4. Durability of using knives;

5. The machine stops when the webbing runs out;

6. Auto-save the cutting settings;

7. Cut and seal the material in same time for simple future processing;

8. Completely installed, ready to use, very easy to operate and setting;

9. Maintenance costs are extremely low.

Applications:

Ratchet straps, lashing straps & tie downs, safety belts, fall protection equipment & safety harness, rescue belts, safety lanyard, military webbing straps, seat belts, lifting slings, lifting straps, crane slings, rigging slings

Click here for video 1                                                           Click here for video 2

Specifications:

Max. cutting width:

150mm

Quantity of hot blades:

Single (Top hot knife)

Cutting length:

10mm to 50000mm

Material of hot knife:

SKD11 steel

Max.temperature of blade:

600 C

Counting system:

Independent digital encoder

Time delay:

2 to 30 second per cutting

Length of blade:

180mm

Blade driven method:

Pneumatic lift and down

Cutting tolerance:

+1mm / -1mm

PLC type:

Closed-loop Control Systems

Air pressure:

1Mpa

Power of heating tube:

1000W

Power

200-240V/50-60HZ

Max. cutting thickness:

7mm of thick webbing made of Nylon, Polyester, Polypropylene

Tariff code (HS code):

8451500000

Optimal sewing thickness:

1-3 mm of thick webbing made of Nylon, Polyester, Polypropylene

Package (plywood case):

1260X850X560 MM, G.W: 79 KGS
