733PLC Heaviest programmable pattern sewing machine for
extremely thick webbing slings, safety harnesses and ropes

733PLC/X Heaviest automatic safety straps and parachute harness sewing machine

733PLC/R Heaviest automatic safety ropes sewing machine for sewn eye terminations

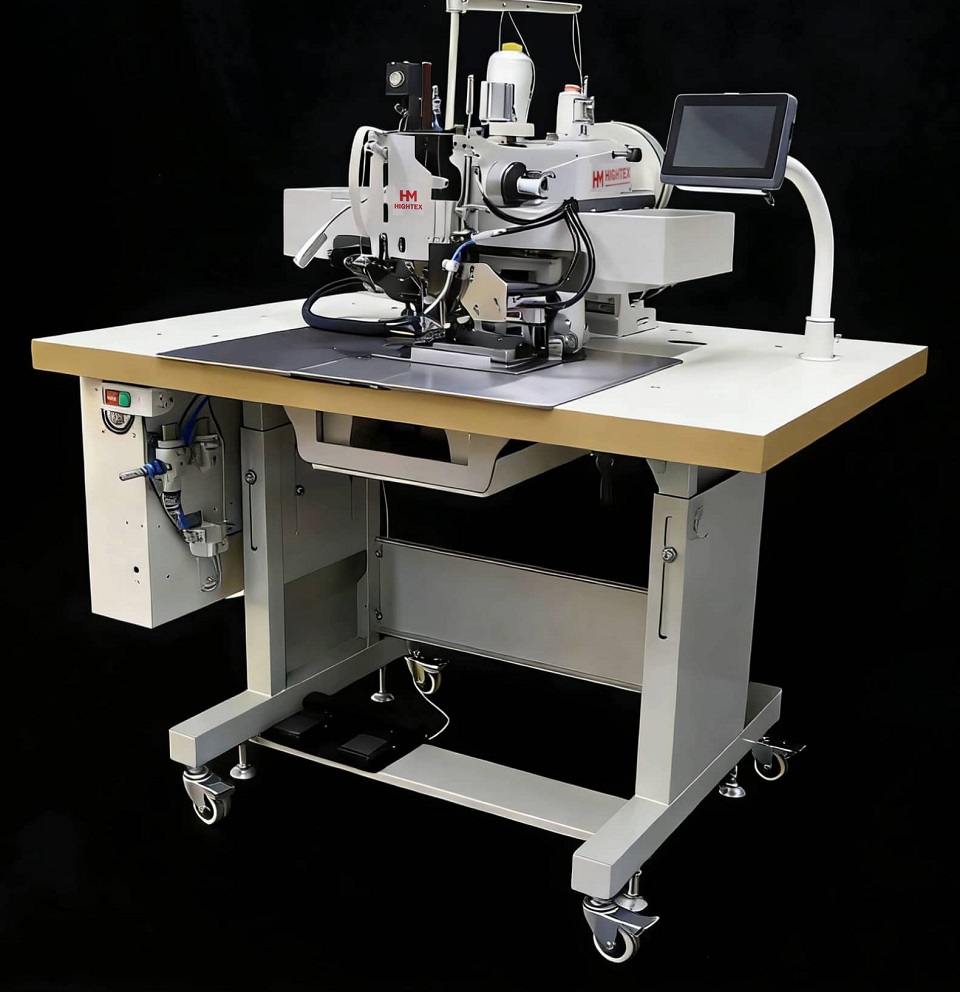

733PLC heaviest automatic sewing machine
733 bobbin

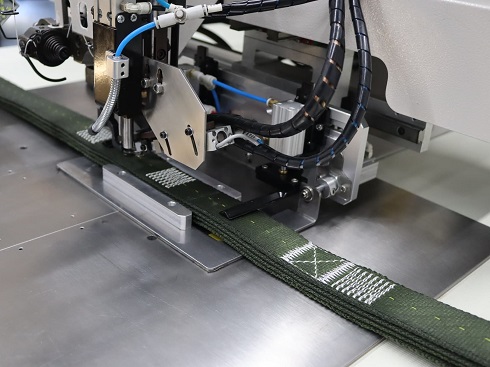

733PLC heaviest automatic pattern sewing machine

733PLC heaviest automatic rope sewing machine

Your advantages:

1. The 733PLC is one of the most heavy duty programmable electronic pattern sewing machines in production today. It can be used to stitch many heavy applications like cargo lifting equipment and personal protective equipment, particularly for the Automotive, Aviation and Military Industries;

2. The presser foot has an ultra high lift of up to 32mm, allowing for a large range of extra heavy weight material or bulky items to be used, such as Nylon, Polyester, Polypropylene, Webbing, Kevlar, Vinyl, Leather and Canvas;

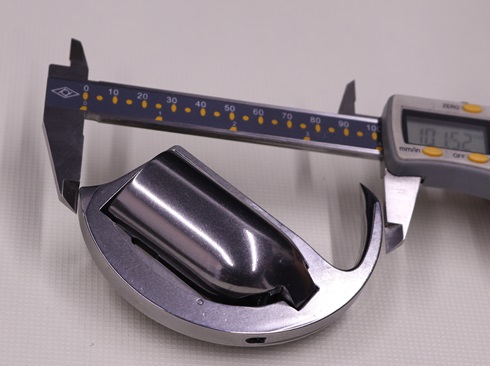

3. The special extra large shuttle hook and bobbin capacity offers high efficiency in sewing products using extra thick thread and has a thread rating up-to Metric size #4, V693, 2000dx3;

4. Can easily sew 6-8 ply synthetic webbing slings (3.5mm of each) or join two ropes and cords together with each of 28mm (independent break testing results show strengths similar to hand splicing, and in some cases exceeding the strength of the rope itself);

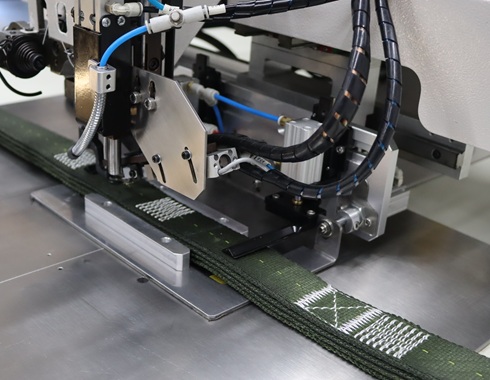

5. Extremely large needle penetration power allow the processing of super tough material, such as Mil-W-4088K type 26 military spec Nylon webbing (for parachute harness);

6. PC Panel Touch Screen on Board with free dedicated software.

Applications:

1. Reinforcement stitches (pattern tacking) for polyester lifting slings, safety straps, parachute harness, backpack straps, safety harnesses & personal fall protection equipment, industrial safety products, vest, military equipment, heavy duty equestrian harness, construction barriers;
2. Bartacking ropes and cordage for Kernmantle ropes, climbing ropes for arborist and rock climber, synthetic fiber mooring rope.

Click here for video 1                                          Click here for video 2                               Click here for similar sewing machine

Specifications:

Max. Sewing Speed:

733PLC/X: 500 RPM, 733PLC/R: 200 RPM

Hook Type:

Large Oscillating Barrel shuttle

Sewing Area:

250 x160mm (733PLC/X) , 130 x 30mm (733PLC/R)

Needle System:

Schmetz 1000H (#280)

Max. Thread size

Metric size #4, V693, 2000dx3

Optimal sewing thickness:

10-28mm thick synthetic webbing(Nylon, Polyester etc.) or ropes

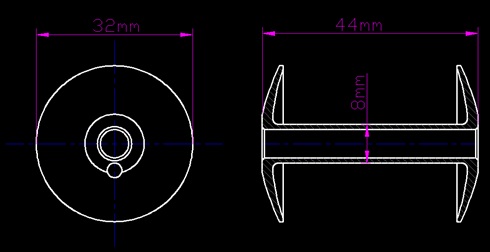

Bobbin size:

Outside Dia. 32mm, Height 44mm

Stitch Length:

0.1~12.7mm

X/Y Drive:

Timing Belt

Work Holder Lift :

38mm

NeedleBar Stroke:

66mm

Presser Foot Lift:

32mm

Presser foot stroke:

4 mm to 10 mm

Max. QTY of Patterns:

520 patterns

Needle cooler:

Cold air

Pattern Storage :

Internal Memory USB

Pattern Input :

Touch Screen

Max. Number of Stitches:

8000 per pattern

Drive Motor:

Limi-Servo (1100 Watts)

Air pressure:

0.6 MPa

Power:

200-240 Volt 1 or 3 Phase

Package (plywood case):

1710*1280*1580mm, G.W:360KGS

Tariff code (HS code):

8452219000
