718-15/728-15 Low cost 1 and 2 needle, extra heavy duty
walking foot thick thread sewing machine for decorative
seams on leather or sewing tents amd parachutes



728 double needle leather sofa sewing machine
728-30 Extra large Vertical Axis rotary hook
Extra large Vertical Axis hook (6 times big)

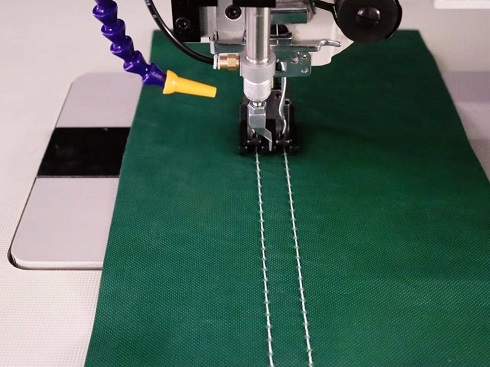

Double thick thread decorative seams

Your advantages:

1. The lowest cost extra heavyduty compound feed walking foot machine for sewing leather sofas, armchairs, couches and other upholstered furniture on the market today;

2. The compound feeding system enables you to sew multiple ply of heavy weight material with even stitch;

3. Is fitted with two extra large vertically mounted hook & bases (6 times bigger compare to regular industrial sewing machine) for sewing with very thick thread up to Nm 10/3;

4. High needle penetration power guarantee easy sewing thick spots or cross seams(over transversal seams), without skipped stitch, loose bottom thread, shorten stitch length;

5. The sewing foot stroke up to 9 mm allows the safe climbing over differently high material plies;

6. Pneumatic climbing device for excellent stitch formation when sewing over thick spots or overlapping seams;

7. Up to 10 mm long stitches for decorative topstitching seams.

Applications:

For functional and decorative stitching leather sofas, armchairs, couches, upholstered furniture, automotive upholstery/car interiors, marine upholstery, parachutes, tarpaulins, covers, awnings, tents, umbrellas, luggage, travelware accessories, sports and camping equipment, wearing apparel, outdoor clothing, footwear, foundation garments and safety equipment.

Video for sewing leather sofa covers                                          Video for sewing tents materials


Specifications:

Max. Sewing Speed:

1200 rpm

Hook Type:

Extra large Vertical Axis Hook

Presser Foot Lift:

23mm

Needle bar stroke:

46.8 mm

Needle System:

794, DY x 3 (#24)

Max. Thread size

Upper #8 - #0, lower #8

Stitch Length:

0-10mm

Bobbin size:

Outside Dia. 37mm, Height 13mm

Needle gauge:

6.35mm to 50.8mm

Thread take up lever:

Slide type

Lubrication:

Semi-automatic lubrication

Presser foot alternating:

6 mm - 9 mm (standard 6 mm)

Working space:

380mm (L) x 145mm( H)

Recommended motor:

200-240V, 750W AC Servo motor

Packing size:

900x430x700MM, 115KGS

Tariff code (HS code):

845229000
