7273PLK Heavy duty electronically controlled pattern sewing
machine with Barrel shuttle hook for ropes and harnesses

7273PLK/R Automatic ropes sewing machine for bartacking sewn eye termination

7273PLK/S Heavy duty programmable pattern sewer for safety harnesses and belts
Automatic harness sewing machine
Mitsubishi PLK-E1008H Barrel shuttle hook

Mitsubishi PLK-B1008H thread burner

Mitsubishi PLK-G2008-H pattern sewer

Your advantages:

1. Long sewing cycles by large Barrel shuttle with large bobbin capacity, even sewing very heavy materials with extremely thick thread;

2. High clamp lift and large needle penetration power allow the processing of extremely thick materials, such as Nylon, Polyester, Polypropylene, Webbing, Kevlar, Vinyl, Leather and Canvas, can easily sew 2-4 ply synthetic webbing slings (3.5mm of each) together or stitch 2 ropes with each of 22 mm (diameter);

3. Top quality parts guarantee high performance and long working life, including HIROSE Shuttle hook and SMC pneumatic system;

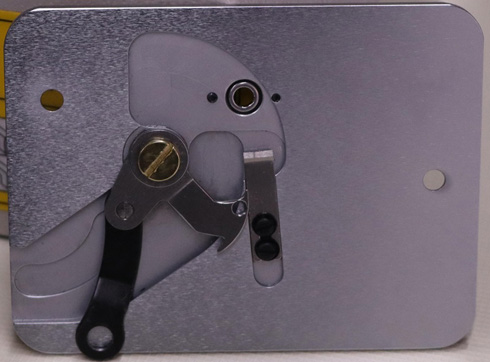

4. The burning type automatic thread trimmer (heat cutter) is special designed for cutthing very thick Polyester sewing thread and Nylon sewing thread (without fringing);

5. The semi-automatic lubrication system can reduce the abrasion on the spare parts so improve service life;

6. This compact type heavy duty electronically controlled pattern sewing machine is completely assembled and tested, Ready to Operate.

Applications:

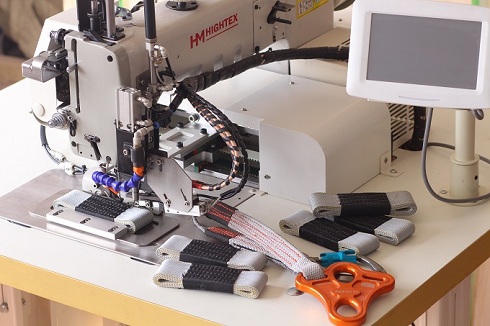

1. Small area reinforcement stitches on harnesses (of fall protection, parachutes and backpack etc), slings, belts, straps, seat belts, military equipment, crane slings, life vest and rigging products;

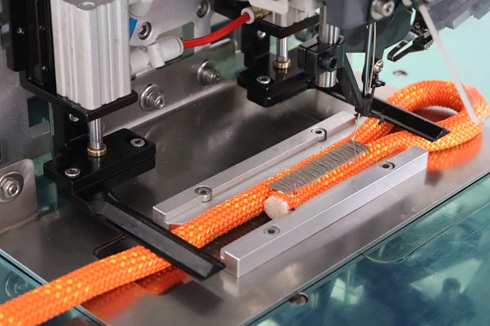

2. Bartacking ropes and cordage for Arborist climbing ropes, Climbing & Caving Ropes, Boating & Marine Ropes and Rescue Ropes.

Click here for video 1                                          Click here for video 2                               Click here for choosing right machine

Specifications:

Max. Sewing Speed:

7273PLK/R: 300 RPM, 7273PLK/S: 700 RPM

Hook Type:

Large Barrel shuttle hook

Sewing Area:

130 x20mm (7273PLK/R) , 130 x 60mm (7273PLK/S)

Needle System:

Schmetz 794 (DYx3) #180-#280

Max. Thread size

Metric #7, V415, T-400, 1300dx3

Optimal sewing thickness:

4-15mm thick synthetic webbing(Nylon, Polyester etc.)

Bobbin size:

Outside Dia. 24mm, Height 30.5mm

Stitch Length:

0.1~12.7mm

Control system:

Closed-Loop Control

Work Holder Lift :

38mm

NeedleBar Stroke:

56.3mm

Presser Foot Lift:

25mm

Presser foot stroke:

4 mm to 10 mm

Max. QTY of Patterns:

520 patterns

Needle cooler:

Cold air

Pattern Storage :

Internal Memory USB

Pattern Input :

Touch Screen

Max. Number of Stitches:

8000 per pattern

Drive Motor:

Limi-Servo (750 Watts)

Air pressure:

0.6 MPa

Power:

200-240 Volt 1 or 3 Phase

Thread trimmer system:

Upper and Lower burner

Package (plywood case):

1180*1200*1420mm, G.W: 280KGS

Tariff code (HS code):

8452219000
