7243-37 Super long arm extra heavy duty compound feed
sewing machine with large Barrel shuttle hook for tents,
parachutes, sails, covers and large furniture upholstery

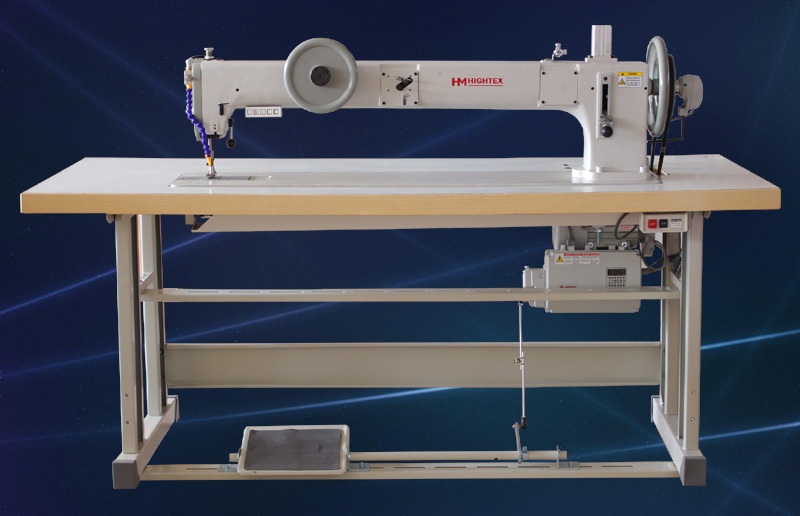

7243-37 extra heavy duty long arm sewing machine
Juki TNU-243 heavy duty compound feed machine
Large Barrel shuttle hook

7243-37 long arm sewing machine
960mm super large clearance room under the arm

Your advantages:

1. The sewing machine arm has been extended (complete casting, not a cut and piece extended arm) to give approximately 960mm clearance, which is very useful when sewing larger items, for example: parachutes, sails, tents, covers et;

2. Its powerful and steady feeding action enables you to sew multiple ply of heavy weight material with a true and even stitch;

3. The presser foot has an extra high lift and can go up to 23mm, allowing for a large range of extra heavy weight material or bulky items to be used;

4. A stitch length of up-to 11mm is possible (which in sewing machine terms, is big) and the machine has a reverse stitch lever as standard;

5. The special extra large shuttle hook and bobbin capacity reduces the number of bobbin changes and offer high efficiency in sewing products using extra thick thread up to metric size 7* (=V415, T-400, 1300dx3);

6. This is the first generation of HighTex (CowBoy) heavy duty industrial sewing machine with over 15 years of production experience and has been sold into over 30 countries, included United States and Europe.

Applications:

sails, parachutes, tents, sheets, mattress, space suits, textile webbing slings, tarpaulins, canopies, outdoor awnings, sleeping bags, military products, marine and furniture upholstery, automobile upholstery, industrial safety products, hot air balloon, umbrella, shade sails, backpacks, field covers, and heavy bulky products.

Click here for video 1                     Click here for video 2                     Click here for video 3                     Click here for cylinder bed machine

Specifications:

Max. Sewing Speed:

800 rpm

Hook Type:

HAD-204 Barrel Shuttle Hook

Presser Foot Lift:

23mm

Needle bar stroke:

56 mm

Needle System:

794 (DYx3) needle,-#230

Max. Thread size

#7, V415, 1300dX3, T-400

Stitch Length:

0-11mm

Bobbin size:

Outside Dia. 24mm, Height 30.5mm

Take up stroke:

96 mm

Tariff code (HS code):

8452290000

Working space:

960mm (length) x170mm( High)

Motor:

200-240V, 750W AC Servo motor

Packing size:

1830X750X1320MM

Weight:

286KGS
