366-76-12-HM Extra heavy duty long arm tiple zigzag
sewing machine with large Barrel shuttle and puller
feed for sail makers and repairs

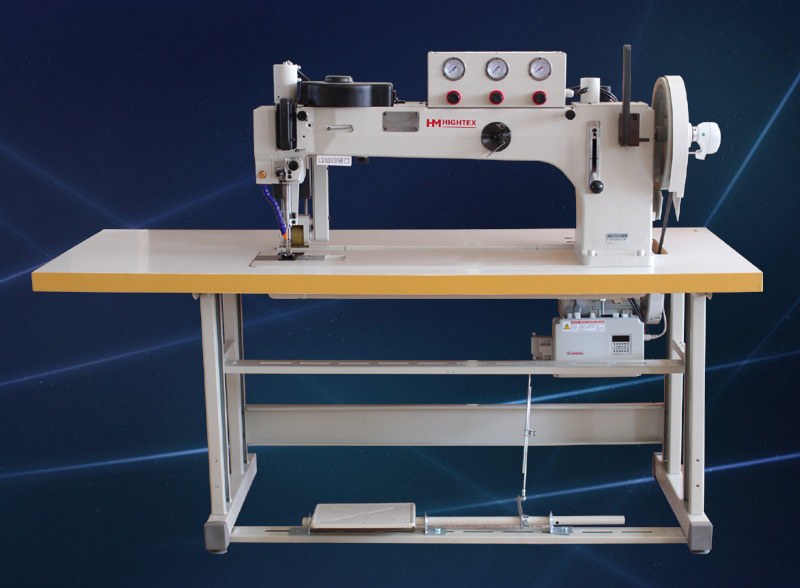

366-76-12-HM long arm zigzag sail sewing machine
366-76-12-HM sail making machine zigzag cam
Cams for straight stitch, 1-step (2-point), 2-step (3-point) and 3-step (4-point) zigzag stitch


366-76-12-HM sail sewing machine puller
Top and bottom feed puller

Your advantages:

1. This sails sewing machine gives large working space underarm eliminates the effort and time needed to fold and roll wide sections of sailcloth and cover fabrics during sewing operations;

2. The extra heavy weight zig-zag sail making machine standard supplied with 4 cams for straight stitch, 1-step (2-points), 2-step (3-points), 3-step (4-points) zigzag, cover all demands of modern sail making industry;

3. It employs a parallel vertical needle bar motion for extremely strong needle penetration force, can easily sew sturdy webbing reinforcement and extra heavy sail corner patches. This specialized sail maker sew machine is capable of powering its needle through 20mm of Dacron, Kevlar, Webbing, Canvas and leather;

4. The large shuttle hook and bobbin capacity reduces the number of bobbin changes and offer high efficiency in sewing sails, tents and tarpaulins, using extra thick thread up to size V277;

5.The heavy duty top and bottom feed puller behind the pressure foot helps sail makers create a smooth, even stitch on large sails;

6. The basic mechanics (Shuttle hook, adjustments and timing) is the same with Adler 366 and Adler 266, therefore it is easier for the sail lofts already worked with these Durkopp Adler sail sewing machines (interchangeable with Durkopp Adler 366-76-12-HM);

7. This heavy duty zigzag sail maker sewing machine is completely assembled and serviced, Ready to Operate out of box.

Applications:

Recommend for sails making and repairing includes cruising sails, racing sails, storm sails, tents, carpets, parachutes, tarpaulins, marquees, shade sails, mattress, truck covers, sofas and large size furniture.


Specifications:

Max. Sewing Speed:

700 rpm

Hook Type:

Koban KSP7-31 or Hirose HSH-7-3

Presser Foot Lift:

20mm

Needle bar stroke:

66 mm

Needle System:

794 # 160 250

Max. Thread size

V138-V277

Stitch Length:

0-10mm

Bobbin size:

Outside Dia. 24mm, Height 30.5mm

Zigzag width:

12 mm

Thread take up lever:

Cam type

Working space:

785mm (length) x 270mm( High)

Recommended motor:

Minimum 0.75 kW

Packing size:

1835X775X1430MM

Weight:

360KGS



Need to expand your production and maximize profits? Contact us at info@automatic-sewing.com
