cowboysew
CB341 Medium to heavy duty cylinder bed walking foot
leather sewing machine for bags, shoes, belts, carpets
furniture upholstery and leather crafts

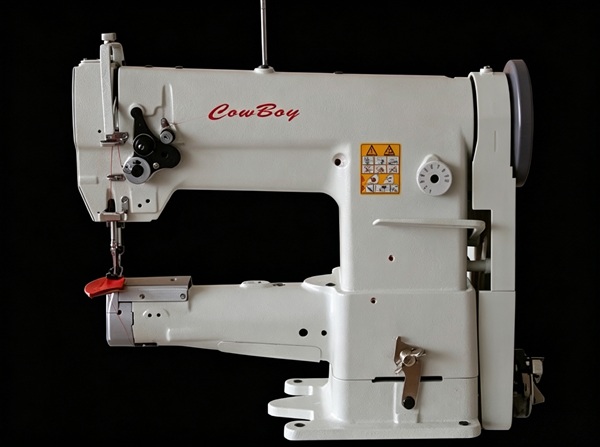

341 leather bag sewing machine
CB341 sewing machine for leather bags
Precious components


CB341 in expensive leather bag sewing machine
Fully belt cover for safety operation

Your advantages:

1. A compound feed walking foot design with needle feed, walking foot, and feed dogs, the CB341 offers perfectly spaced stitches in both forward and reverse;

2. A larger bobbin than most cylinder bed machines in its class. The large bobbin allows for fewer bobbin changes and thicker thread use;

3. A drop in style bobbin allowing for easier bobbin changes;

4. The CB341 can handle thread from size 46 to 138, and in certain conditions, up to a size 207 thread;

5. The build quality and efficiency in operation of the 341 is very refined, which translates into and excellent running machine with incredible durability and efficient operation;

6. The CB341 features a 10.5 inch arm and can comfortablely sew from 1/16" to 3/8" inch thick day to day;

7. It offers a 1/2" presser foot lift enabling the operator to fit thick materials under the arm with ease;

8. Fully belt cover for safety sewing operation;

9. A full array of special sewing equipment are available for high productivity and perfect seam quality.

Applications:

leather bags, wallets, chaps, chinks, belts, billfolds, purses, handbags, football, bridles & harness, luggage, straps, headstalls, automotive upholstery, marine vinyl and canvas, and other lightweight and medium weight projects.


Specifications:

Max. Sewing Speed:

2500 rpm

Hook Type:

2 times large Vertical-axis Hook

Presser Foot Lift:

15mm

Needle bar stroke:

33.2mm

Needle System:

DP*17 18#-24#

Max. Thread size

#10 (=T-270, V277, 840dx3)

Stitch Length:

0-8mm

Bobbin size:

Outside Dia. 25.5mm, Height 10mm

Max. top feed stroke:

7 mm

Balance wheel Dia.:

72mm

Working space:

225mm (length) x110mm( High)

Recommended motor:

Minimum 0.55 kW

Packing size:

605x285x625MM, 46KGS

Tariff code (HS code):

8452290000
