7335 Small cylinder bed walking foot sewing machine with
moving binder for perfect binding leather goods, bags and
leather crafts

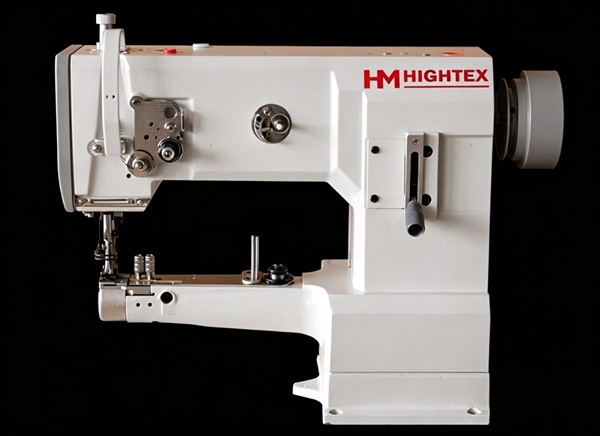

335 leather binding sewing machine
335 leather binding machine
Full synchronized binder

335 binding sewing machine
Built-in bobbin winder

Your advantages:

1. The full synchronized binder using a synchronous motion, the close fitting binding folder moves backwards and forwards with the feed mechanism to ensure constant accurate sewing of the binding tape;

2. A heavy duty triple feeding action by way of: bottom feed, needle bar feed and walking foot top feed, which combine together to produce high quality displacement-free seams;

3. The versatile narrow cylinder free-arm design allows binding on tight radius corners like: bags, gloves, shoes, holster, knife sheaths, and filters etc.

4. Fewer bobbin changes due to the large hook (40% more bobbin capacity than standard hook);

5. The HighTex is of a robust construction for industrial heavy duty use and its features also include a front mounted bobbin winder for easy use and quick change over, plus a reverse lever with combined stitch length adjuster.

Applications:

Suitable for working on tubular or pre-attached articles:
1. Standard sewing work on leatherware, bags and leather crafts;
2. Binding of shoes, bags and leatherware with leather, imitation leather or textile tape;
3. Piping work on bags, suitcases and upholstery;
4. Decorative stitching in small leather goods

Click here for video 1                                                             Click here for video 2

Specifications:

Max. Sewing Speed:

2200 rpm

Hook Type:

1.4 times large rotary hook

Presser Foot Lift:

14mm

Needle bar stroke:

33.4 mm

Needle System:

134–17 DP×17 Nm 80–100

Thread take-up lever stroke:

59.6 mm

Stitch Length:

0-6mm

Bobbin size:

Outside Dia. 22mm, Height 10mm

Max. top feed stroke:

7 mm

Cylinder arm diameter:

46.5mm

Working space:

257mm (length) x110mm( High)

Recommended motor:

Minimum 0.55 kW

Packing size:

630×280×600MM, 44KGS

Tariff code (HS code):

8452290000
