204-370 Extra heavy duty flat bed triple feed lockstitch
sewing machine with large Barrel shuttle hook for very
thick sewing threads and heavy materials



Adler 204-370 sewing machine
Adler 205-370 stitching machine
Adler 204-370 industrial sewing machine

Your advantages:

1. Excellent stitch pattern and constantly tight stitches, even when sewing with extremely thick threads;

2. Constant stitch lengths due to optimized triple feed kinematics, even in case of extremely thick materials;

3. Up to 14 mm long stitches for decorative topstitching seams;

4. Excellent climbing properties guarantee easy sewing thick spots or overlapping cross seams, without skipped stitch;

5. Long sewing cycles by barrel hook with large bobbin capacity, even in case of thick threads.


Optional Sewing Equipment:

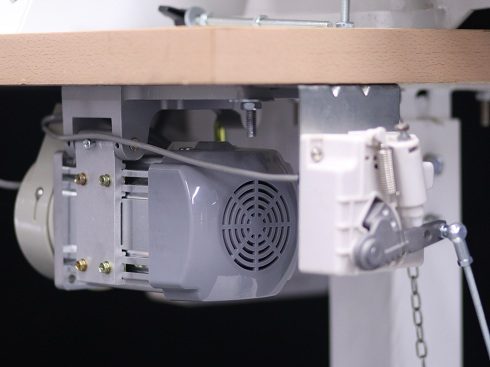

1) Automatic presser foot lift; 2) Automatic back tacking (reverse); 3) Automatic needle UP/DOWN position servo motor; 4) Needle cooling system; 5) Pneumatic center seam guide; 6) Hi-Intensity LED working light.


Typical Application and Subclass:

204-370BF Upholstery sewing machine for thick thread decorative seams: leather sofas and armchairs, office chair, car upholstery and marine upholstery

204-370CS Webbing sewing machine for technical textiles: webbing lifting slings, cargo lashing straps, safety harness, military belts, backpacks, parachutes,sails, tents, tarps, filters, industrial safety products and tire covers

204-370BP Buffing wheel sewing machine: for spiral sewn buffing wheels and polishing wheels made in cotton, sisal, flannel and Denim

Click here for video 1                   Click here for video 2                Click here for video 3                  Click here for similar machine

Specifications:

Max. Sewing Speed:

800 rpm

Hook Type:

HAD-204 Barrel Shuttle Hook

Presser Foot Lift:

20mm

Needle bar stroke:

56 mm

Needle System:

794 needle, #160-#280

Max. Thread size

8/3 (=V415, T-400) or 1.4mm Braided yarn

Stitch Length:

0-14mm

Bobbin size:

Outside Dia. 24mm, Height 30.5mm

Take up stroke:

96 mm

Presser foot alternating:

10mm

Working space:

320mm (length) x185mm( High)

Recommended motor:

Minimum 0.75 kW

Packing size:

770x620x520 MM

Weight:

85KGS
