169 Long Arm Side Wall Sewing Machine for Boots
----Single needle double thread lockstitch machine
for sewing box soles onto shoes and ankle boots

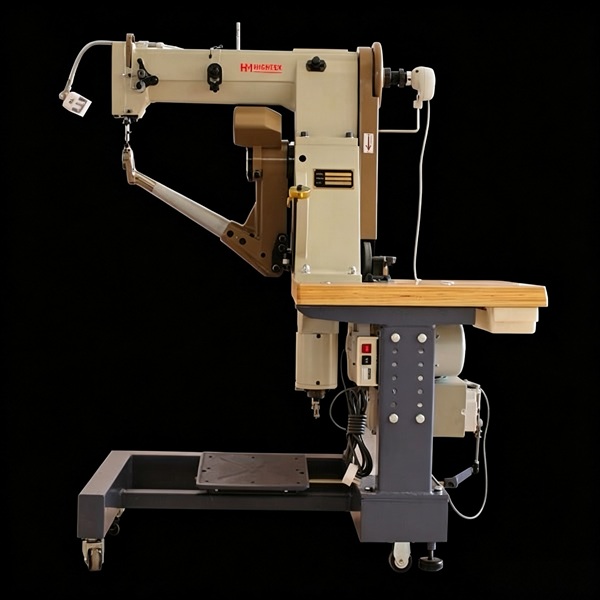

169 Side wall sewing machine
Side wall sole stitching machine

Side Wall Sewing Machine For Shoe

Side Wall Stitching Machine

Your advantages:

1. The machine has a rotation arm or horn which supports the shoe to make sewing easy around the toe and heel;

2. Max. daily production 1000 pairs;

3. Equipped with Ho Hsing servo position motor and heavy duty foot lift solenoid;

4. We also supply pnuematic bladder bag presses for sticking the sole onto the upper prior to using the 169 side wall stitcher;

5. This side wall sole stitching machine adopts compound feed mechanism that guarantees the uniform stitches;

6. Completely installed, thoroughly tested and serviced, ready to operate out of box.


Suitable for leather boots, working boots, safety footwear, leather shoes, sports shoes, leisure shoes, casual shoes, sandals, side seam locking type sideline processing.


Max. Sewing Speed:

900 rpm

Hook Type:

Large rotary hook

Feeding system:

Compound feed mechanism


750W Servo motor

Needle System:


Max. Thread size

Metric#10 (=T-270, V277, 840dx3)

Sewing thickness:

2 8 mm

Bobbin size:

Outside Dia. 25mm, Height 10mm

Stitch length:

3 12 mm

Working area:


Presser Foot Lift:


Presser foot lift:

Electric foot lifter

Package (plywood case):

1360X780X1560MM, G.W: 220KGS

Tariff code (HS code):
